neutrik > Produkte > powerCON > powerCON
blue / grey
> NAC3FXXB-W-L

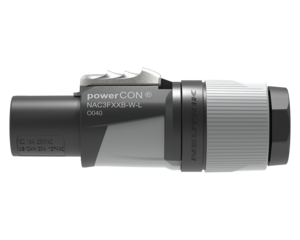

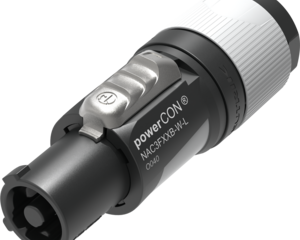

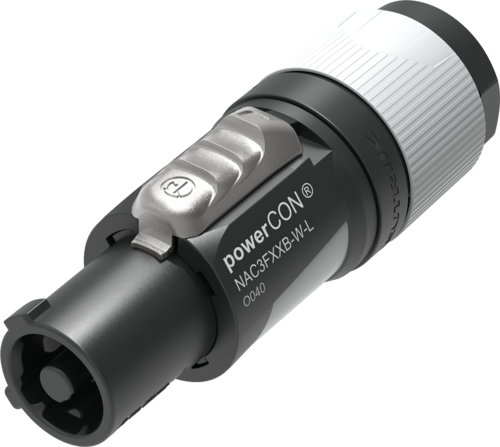

NAC3FXXB-W-L--view-45degree

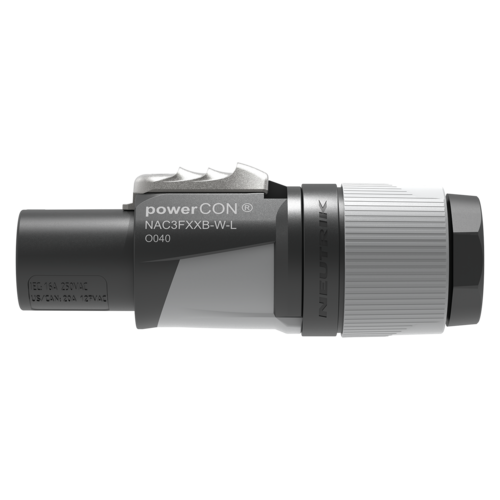

NAC3FXXB-W-L--front

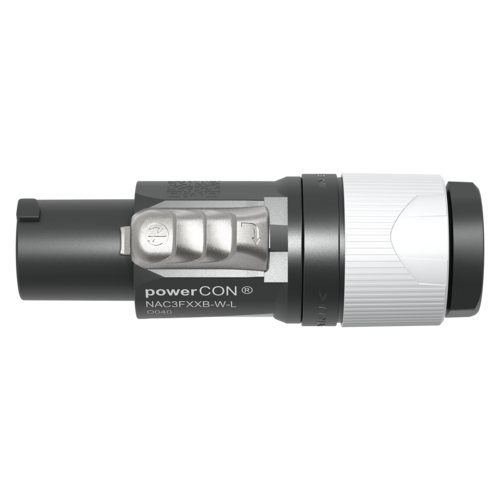

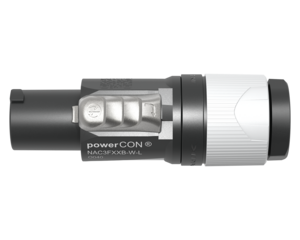

NAC3FXXB-W-L--view-side
NAC3FXXB-W-L--view-45degree
NAC3FXXB-W-L--front
NAC3FXXB-W-L--view-side

NAC3FXXB-W-L

Locking AC mains cable connector, keyed and color coded (grey) for power-out, screw terminal assembly, for cable diameters 10 - 16 mm.

The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles.

It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.

Datenblatt Download
Auswahl Themen
Features & Benefits Downloads Technische Informationen Zubehör
Datenblatt Download

Features & Benefits

  • IEC EN 60320-1 / UL 60320-1 / CSA  C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
  • Ergonomic design with slip-proof two-component molded housing
  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Easy and reliable twist lock system
  • Improved kink protection by two-component bushing

Downloads

  • 3D drawing NAC3FXXB-W-L (STP)
  • Drawing NAC3FXXB-W-L (PDF)
  • Drawing NAC3FXXB-W-L (DXF)
  • Assembly instruction powerCON Cable Connector - NAC3FXXA-W-S / NAC3FXXB-W-S / NAC3FXXA-W-L / NAC3FXXB-W-L
  • VDE Certificate ENEC10/VDE NAC3FXXB-W-S, NAC3FXXB-W-L
  • CB Certificate powerCON cable connectors NAC3FXXB-W-S, NAC3FXXB-W-L
  • cUL Certificate E343813 NAC3FXXB-W-*

Assembly instruction video for powerCON FXXA/FXXB

Cable list

cable-list_NAC3FXX-x

Technical Information

Produkte
Title NAC3FXXB-W-L
Connector series powerCON blue/grey
Elektrisch
Contact resistance ≤ 2 mΩ
Dielectric strength > 3 kVac (after mating cycles)
Insulation resistance > 10 GΩ (initially)
Number of electrical contacts 2 + PE
Rating Europe EN 60320-1: 16 A 250 V AC, CBC
Rating USA / Canada cUL 60320-1: 20 A 127 V AC, CBC
Mechanische Daten
Cable O.D. 10 – 16mm
Lifetime Typically 5’000 mating cycles
Wiresize (mm²) 1.5 – 2.5 mm²
Wiresize (AWG) 14 – 12 AWG
Locking device Twist lock
Termination Screw type terminals
Material
Contact plating Ag
Contacts Copper Alloy
Insert Polyamide (PA6.6)
Locking element Zinc diecast
Shell Polyamide (PA6) / TPE
Strain relief Polyketone
Bushing Polypropylene / TPE
Umwelt
Temperature range -33 °C to + 80 °C
Protection class IP20
Flammability acc. to UL94 V-0

Accessories

HTLACA View 2
HTLACA
HTLACB
HTLACB
