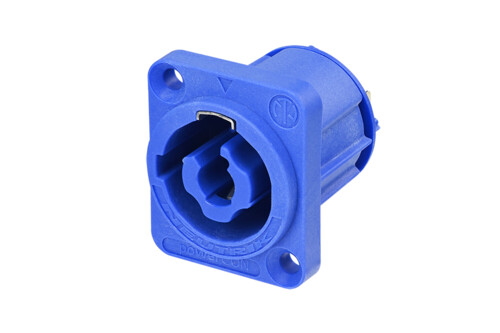

NAC3MPXXA-WOT

Appliance inlet connector, 3/16" flat tab terminals, blue, without insulation divider for PCB mounting only. If nothing mounting on a PCB choose NAC3MPXXA

The powerCON XX is a locking mains connector. It replaces appliance couplers wherever a very reliable solution in combination with a locking device is needed in order to guarantee a safe power connection.

This connector is suitable to be used as part of fire enclosures according to IEC 62368-1

This appliance coupler fulfils the requirements of the IEC 60320-1 and of theUL 60320-1 with breaking capacity (CBC).

Appliance coupler have superior electrical endurance due to its CBC design according to the IEC 60320-1.
Appliance couplers NAC3MPXXA and NAC3MPXXB are designed to be engaged or disengaged in normal use when live or under load when using with connectors and plug connectors of the FXX Serie(s).

Datenblatt Download

Auswahl Themen

Features & Benefits Downloads Technische Informationen Zubehör

Datenblatt Download

Features & Benefits

Lockable single phase connector
Certified according to IEC 60320-1 & UL 60320-1
Certified according to UL-1977, & CAN/CSA-C22.2 No. 182.3
Extremely robust and reliable
UL94 V-0 materials
Drop-in replacement for NAC3MXXA-WOT; mates to NAC3FXXA cable connectors
3 contacts for line, neutral and premating safety ground
Fast and easy twist lock latching system Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
Suitable for fire enclosures according. to IEC 62368-1

Downloads

Technische Informationen

Produkte
Artikelnummer	NAC3MPXXA-WOT
Gender	male

Elektrisch
Durchgangswiderstand	≤ 2 mΩ
Durchschlagsfestigkeit	4 kV DC/2,8 kV AC
Isolationswiderstand	> 1 GΩ (after damp heat test IEC 68-2-30)
Anzahl elektrischer Kontakte	2 + PE
Nennspannung Europa	EN 60320-1: 16 A 250 V AC
Nennspannung USA	UL 60320-1:20 A 127 V AC
	UL 1977: 20 A 250 V AC
