neutrik > Produkte > opticalCON Glasfaser-Verbindungssystem > opticalCON HYBRID MED > opticalCON HYBRID MED Breakout-Kabel
hybrid_med_breakoutcable

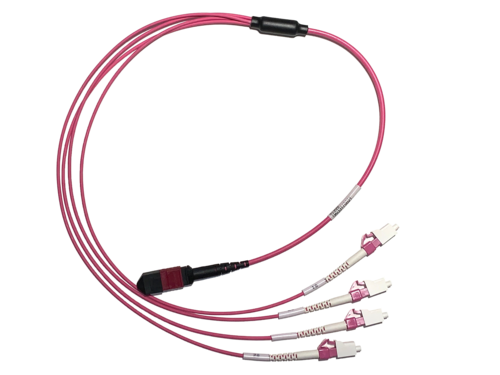

opticalCON HYBRID MED Breakout-Kabel

Hochleistungs-MTP® Breakout-Kabel in Linsentechnologie für permanente und vorübergehende Installationen. LC-Anschlüsse der Premium-Klasse A (Multimode OM4) gewährleisten eine niedrige Einfügedämpfung und hohe Leistung.

Datenblatt Download
Auswahl Themen
Features & Benefits Downloads Technische Informationen Zubehör
Datenblatt Download

Features & Benefits

  • Hochleistungs-MTP® Ferrule in Linsenstechnologie
  • Standard Split-Länge: 30 cm
  • Mit 4x, 6x, 8x oder 16x LC-Breakout-Anschluss
  • Corning ClearCurve® OM4-Leistung

Downloads

  • Cleaning Instruction - opticalCON HYBRID MED
  • opticalCON HYBRID MED Anwendung
  • Produktbroschüre opticalCON HYBRID MED

Technische Informationen

Produkte
Title (4xLC) NKOB16M4-XP-0-*
Title (6xLC) NKOB16M6-XP-0-*
Title (8xLC) NKOB16M8-XP-0-*
Title (16xLC) NKOB16M-XP-0-*
Gender Monolithic
Mechanische Daten
Lifetime 10'000 mating cycles
Locking device Push/Pull
Mounting direction Front mounting
Umwelt
Temperature range -10°C to +70°C
Optical
Insertion loss Typ. 0.65 dB per connection / Max. 0.9 dB per connection
Return loss Typ. 28 dB per connection / Min. 25 dB per connection
Cable
Jacket Material FRNC
Weight 8 kg/km
Fire Load 0.14 MJ/m
Flammability
Cable is flame retardant acc. to IEC 60332-1-2
Smoke Density acc. to IEC 60332-3-22 Cat.A
Halogen-Free acc. to IEC 60754-1
Acidity of the combustion gases acc. to IEC 60754-2
