neutrik > Produkte > SCDX

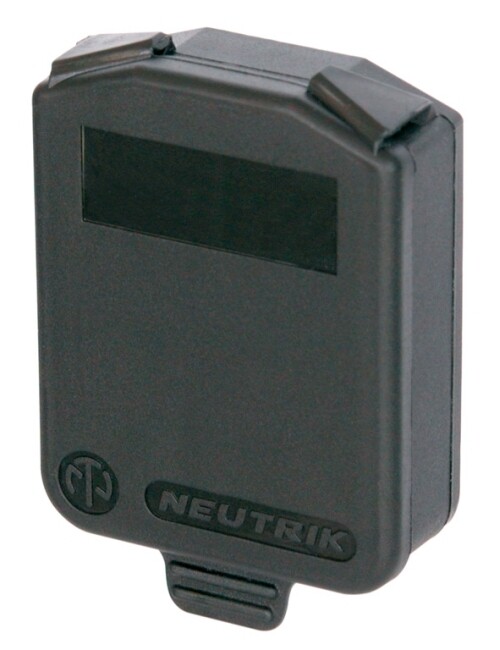

SCDX geschlossen

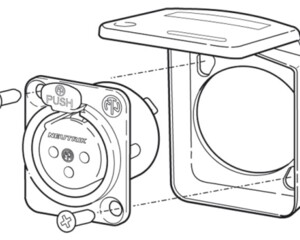

SCDX assembly
SCDX geschlossen

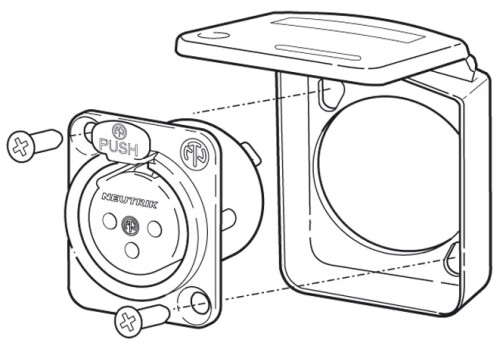

SCDX assembly

SCDX

Mit der SCDX Dichtklappe werden D-Form Einbausteckverbinder im ungesteckten Zustand gegen Wasser, Staub und Schmutz gemäss IP42 abgedichtet. Verfügbar in verschiedenen Farben.

SCDX     –  schwarz (in Verbindung mit opticalCON zur Kennzeichnung von Multi-Mode)
SCDX-5  –  grün (in Verbindung mit opticalCON zur Kennzeichnung von Single-Mode APC)
SCDX-6  –  blau (in Verbindung mit opticalCON zur Kennzeichnung von Single-Mode PC)
SCDX-9  –  weiss (z.B. zur Wandmontage)

Passend für:
XLR D Series female
XLR D Series male
1/4" Jacks D Series
speakON NL2M* and NL4M*
powerCON 20 A Series NAC3MPA* and NAC3MPB*
powerCON TRUE1 NAC3MPX
USB NAUSB-W*
HDMI NAHDMI-W*
D-SUB NADB*
Firewire NA1394-6-W*
etherCON A&B Series
etherCON D Series
etherCON CAT6 Chassis Connectors
BNC D Series
Phono (RCA) Chassis Connectors

Datenblatt Download
Auswahl Themen
Features & Benefits Downloads Technische Informationen
Datenblatt Download

Features & Benefits

  • IP42 Schutz gegen Staub und Spritzwasser
  • Passend für alle D-Form Einbausteckverbinder
  • Schnappverschluss
  • Beschriftungsbereich

Downloads

  • Strichzeichnung SCDX
  • Strichzeichnung SCDX
  • 3D File SCDX
  • Expertise Brief SCDX

Technische Informationen

Produkte
Titel SCDX
Mechanische Daten
Leiterquerschnitt
Material
Sealing cover PP-R
Umwelt
Entflammbarkeit UL 94 HB
Temperaturbereich -30° to +80 °C
