neutrik > Produkte > powerCON > powerCON Zubehör > SCNAC-04
SCNAC-04

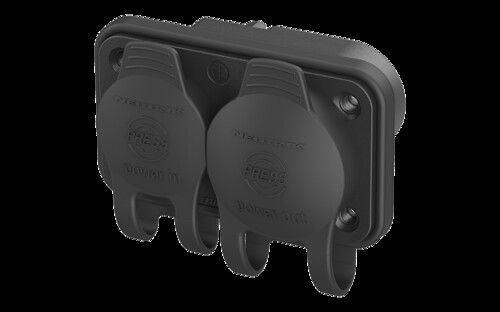

SCNAC-04 assembled
SCNAC-04

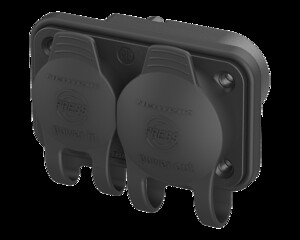

SCNAC-04 assembled

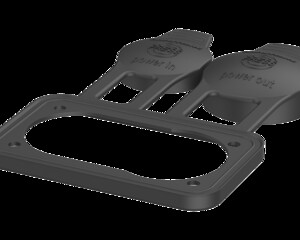

SCNAC-04

NEU: Die Gummidichtkappen SCNAC-04 mit zwei Kappen (Power-in / Power-out) schützt die powerCON TRUE1 TOP Einbausteckverbinder NAC3PX-TOP vor Staub und Wasser gemäß der Schutzklasse IP 65. Der kompakte Rahmen ist benutzerfreundlich, leicht zu montieren und ermöglicht eine hohe Packungsdichte auf dem Gehäuse.

Datenblatt Download
Auswahl Themen
Features & Benefits Downloads Technische Informationen
Datenblatt Download

Features & Benefits

  • IP 65 Wasser- und Staubschutztest für 15 Minuten mit Vakuum (-0,2 bar) in geschlossenem Zustand bestanden, geeignet für Lichtbranche / Industrielle Beleuchtungstechnik
  • UV-beständiges Material für den Einsatz in rauer Außenumgebung
  • Ermöglicht hohe Packungsdichte auf dem Gehäuse
  • Benutzerfreundlich, leichter zu montieren

Downloads

  • Assembly Instruction: Sealing Cover SCNAC-*
  • 2D Drawing SCNAC-04 (PDF)
  • Drawing SCNAC-04 (DXF)

Technische Daten

Produkte
Titel SCNAC-04
Material
Material EPOM
Color Black
Marking Power in / Power out
Umwelt
Flammability acc. to UL 94 HB
Protection class acc. to IEC 60529 IP 65
