neutrik > Produkte > powerCON TRUE1 Netzkabel

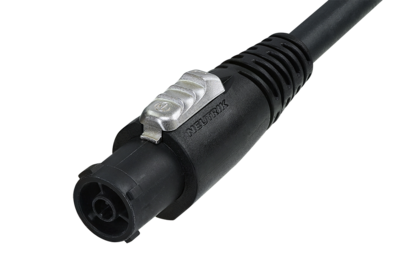

powerCON TRUE1 cable female

powerCON TRUE1 Netzkabel

Umspritztes Standard-Netzkabel in Schutzklasse IP65 mit 3 Leitern, welche über einen Querschnitt von je 1,5 mm2 oder AWG 12 verfügen.

Die Kabel sind auf einer Seite mit einem umspritzten Neutrik powerCON TRUE1 NAC3FX-W oder NAC3MX-W bestückt. Das zweite Ende ist offen und kann mit einem landeseigenen Netzstecker bestückt werden. Umspritzte landeseigene Anschlüsse auf Anfrage. Die Kabel sind in verschiedenen Längen verfügbar.

Datenblatt Download
Auswahl Themen
Downloads Technische Informationen
Datenblatt Download

Downloads

  • Product Guide - powerCON and Circular Connectors
  • Strichzeichnung NKPF-NC-*
  • Strichzeichnung NKPF-NC-*

Links

  • UL Certificate (ELBZ2.E343814)
  • cUL Certificate (ELBZ8.E343814)

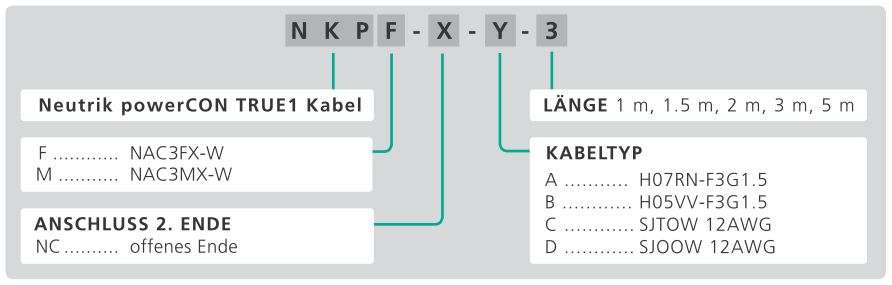

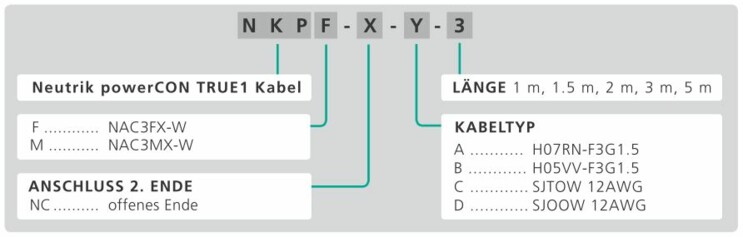

Aufbau Artikelnummer

powerCON+TRUE1+Part+Number+Breakdown+Netzkabel

powerCON TRUE1

Der powerCON TRUE1 ist ein wasserdichter verriegelbarer Gerätesteckverbinder für eine Strombelastbarkeit bis 16 A (USA: 20 A). Er ersetzt Kaltgerätestecker dort, wo eine sehr robuste Lösung mit einer Verriegelung gebraucht wird, um eine sichere Stromverbindung zu garantieren.

Der powerCON TRUE1 ist eine Steckvorrichtung und darf deshalb unter Last und unter Spannung ein- und ausgesteckt werden.

powerCON TRUE1 Power Cable male

powerCON TRUE1 Power Cable male

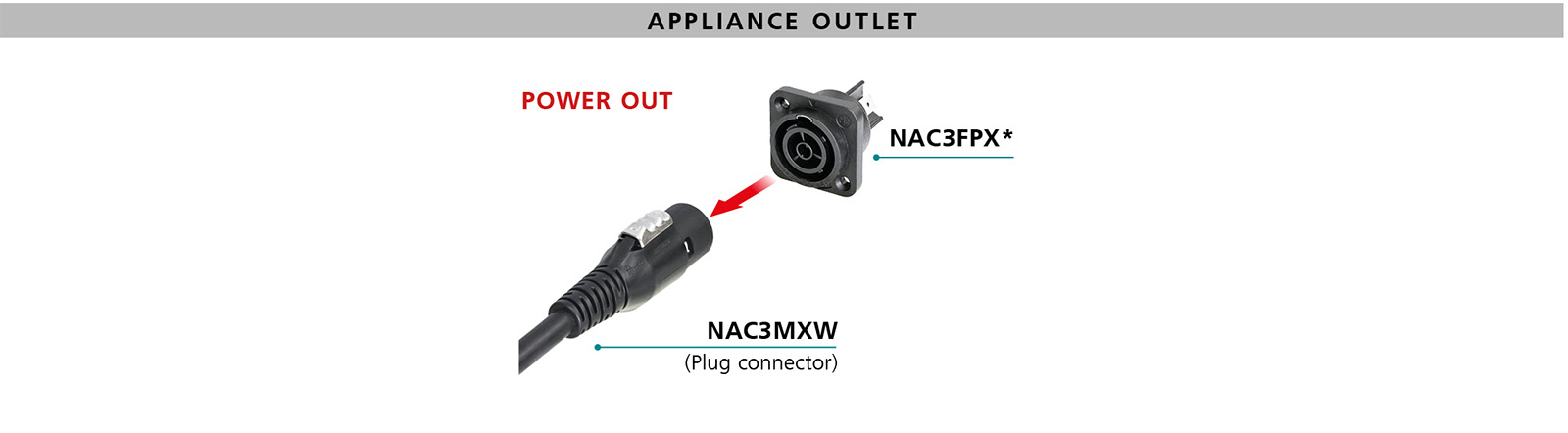

Mating scenario powerCON TRUE 1 chassis connector NAC3FPX-W

Mating scenario powerCON TRUE 1 chassis connector NAC3FPX-W

Mating scenario powerCON TRUE 1 chassis connector NAC3MPX-W

Mating scenario powerCON TRUE 1 chassis connector NAC3MPX-W

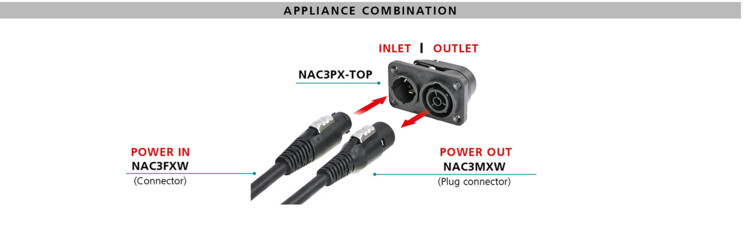

Mating scenario powerCON TRUE 1 chassis connector NAC3PX

Mating scenario powerCON TRUE 1 chassis connector NAC3PX

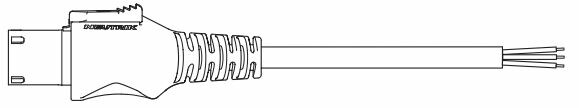

powerCON TRUE1 Power Cord

powerCON TRUE1 Power Cord
