NL4MDXX-H-3

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

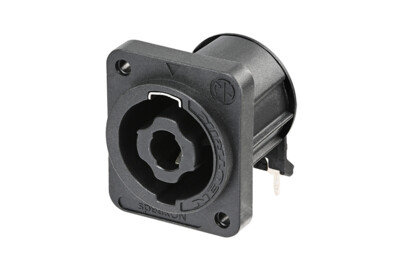

4 pole chassis connector, black D-size flange, self tapping screw holes (A-screw), horizontal PCB mount.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Features & Benefits

IEC 61984 certified > IEC 62368-1 compliant
Glass reinforced V-0 materials make it extremely robust and dependable
Precise keyway for secure mating
Accurate twist lock latching system
Metal insert in locking area

Downloads

BDA 595 V2 - speakON NL4MDXX-H-2 & NL4MDXX-H-3

pdf - 772.13 KB

BDA 591 V1 - Assembly recommendation of speakON chassis connector

pdf - 318.08 KB

20002500_-_NL4MDXX-H-3

pdf - 457.81 KB

20002500_-_NL4MDXX-H-3

dxf - 2.54 MB

30010180_-_NL4MDXX-H-3

stp - 4.57 MB

Certificate_ENEC_40052110 (2024-06-11)

pdf - 307.3 KB

CB_Cert_SE-100963A1M1

pdf - 84.88 KB

Certificate ETL_104216254ATL-001A_240425_ATM (2024-04-25)

pdf - 117.47 KB

03 Section speakON PG DE 202202-V23

pdf - 5.44 MB

Technical Information

Produkte
Title	NL4MDXX-H-3
Gender	male

Elektrisch
Contact resistance	≤ 2 mΩ
Dielectric strength	2.8 kVac
Insulation resistance	>0.1 GΩ (after dampheat)
Rated current per contact	25 A rms continuous (audio rating significantly higher, depending on signal)
Rated voltage	250 V ac
Attention	speakON is NOT to be used as an AC mains or power supply connector!

Mechanische Daten
Lifetime	> 5000 mating cycles
Wiring	Horizontal PCB mount
Locking device	Quick Lock
Mounting direction	Rear mounting
Chassis shape	D
Layout	Standard hole position, self tapping screw holes (A-Screw)
